Every HDMI cable you own almost certainly has it. Your TV almost certainly doesn't support it. And yet, for a brief moment in 2009, it was supposed to change how every device in your living room got online.
Meet HEC — the HDMI Ethernet Channel — one of the most complete non-starters in consumer electronics history. But its story isn't as simple as "Wi-Fi won." The real reason HEC failed is more disappointing than that.
HDMI 1.4 added Ethernet support in 2009
HDMI Ethernet Channel could carry 100 Mbps over an HDMI cable
In the late 2000s, HDMI had already become the dominant standard for connecting TVs and AV equipment. By the end of 2009, 100% of digital televisions were expected to ship with at least one HDMI input. The HDMI standard's owners had the industry's ear, and they were about to use it.
On May 28, 2009, HDMI Licensing, LLC announced the features that would be incorporated into the upcoming HDMI 1.4 specification. It was a landmark release. It was the first version to support 4K resolution (albeit only up to 30Hz), the first with HDMI ARC (the Audio Return Channel), and it added 3D video support just in time to ride the wave sparked by Avatar later that year.
Buried alongside all of those headline features was a quietly ambitious idea: what if you could run Ethernet through the HDMI cable too?
HDMI Ethernet Channel was designed to replace separate Ethernet cables
It was a brilliant idea
The HDMI Ethernet Channel (HEC) was designed to support Ethernet connectivity in addition to HDMI's existing audio and video capabilities. Instead of running a separate Ethernet cable to every device in your home theater, one HDMI cable could carry the internet signal alongside everything else. Connected devices that included HEC would be able to send and receive data via 100 Mbps Ethernet, making them instantly ready for any IP-based application.
What's striking about HEC is how thoroughly it was actually engineered. It wasn't a vague checkbox in a spec document. HEAC — the combined designation for HEC and ARC — utilizes two specific lines in the HDMI connector: the previously unused Reserved pin and the Hot Plug Detect pin, with HEC transmitted as a differential signal over the pair and ARC riding as a common mode component of the same wiress.
Devices negotiate the connection through a full discovery protocol that runs through HDMI CEC, traffic is prioritized using VLAN tags so time-sensitive data gets through first (kind of like QoS in your router), and two new cable types were created specifically to support it. The spec writers had thought it through completely. None of it ever shipped in a mainstream product.
HEC uses differential signaling — a technique that reduces electromagnetic interference by sending two 100 MHz signals in opposite directions. This technique is present in almost every modern HDMI cable, but interestingly, HEC could also become a security threat.
HDMI Ethernet Channel failed
But it's twin, HDMI ARC, succeeded
|
|
The original Xbox One does not support HEC. In fact, it doesn't even support HDMI CEC. |
The concept behind HEC was to make the TV a central hub for all connected devices, requiring just one Ethernet cable for internet access across everything in the room. The TV connects to the router. Everything else — the console, the Blu-ray player, the AV receiver — connects to the TV over HDMI, and gets internet along for the ride. A single HDMI cable goes, and you get Ethernet without an Ethernet cable.
The explanation you'll most often read for HEC's failure is that Wi-Fi killed it. That's not wrong, but it misses the more fundamental issue.
HEC's entire architecture rested on one assumption: that the TV would be the network hub. But in 2009, most televisions had no internet connection to speak of. Smart TV as a meaningful category barely existed. In fact, LED TVs were just becoming mainstream! Netflix didn't launch streaming until 2010. YouTube on a TV was a novelty. The TV had no internet because it had no use for one — and a device that barely touches the internet has no business acting as a gateway for everything else in the room.
If TV manufacturers saw no reason to put a meaningful internet connection in their sets, they certainly weren't going to add HEC-compatible ports on top of that. And if TVs didn't have HEC, then console makers, Blu-ray manufacturers, and AV receiver companies had zero reason to implement it on their end either. HEC on a PS3 is just dead wiring if the TV it's plugged into has no internet to share. The whole system depended on the TV being the hub. The TV wasn't the hub. So the whole system went nowhere.
Nowhere is this clearer than in how HEC's twin feature, ARC, fared by comparison. ARC was born from the exact same HDMI 1.4 specification, announced on the same day, running through the exact same pair of pins. One became widely used while the other went extinct before anyone knew it existed.
The reason isn't complicated. ARC solved a problem that actually existed in 2009. Before that, anyone with a soundbar or AV receiver needed a separate audio cable running back from the TV, even if HDMI was already connecting the two. ARC eliminated that redundant wire.
TVs had audio! They had always had audio. That was half of their entire reason for existing. So when a feature arrived that made audio routing smarter, manufacturers jumped at it.
HEC needed the TV to be a network hub. The TV wasn't a network hub. It was a screen. ARC met the living room where it already was. HEC tried to meet it where it was going — and the living room didn't get there fast enough.
Everything else that went wrong
The timing problem alone might have been survivable. The rest of HEC's circumstances were not. Because HEC was listed as optional in the HDMI 1.4 spec, no manufacturer was required to implement it — and predictably, no mainstream consumer product has ever shipped with HEC support since the spec's release in 2009.
HEC also required new HDMI cables end to end, meaning the entire installed base of existing cables was useless for it from day one. And rather than introduce one clean new cable type, HDMI 1.4 arrived with five different connector variants, which added even more confusion to an already confusing cable landscape. By the time the smart TV era finally made the hub argument valid, Wi-Fi got fast and people just used Wi-Fi for their devices.
HEC would actually be fantastic today
The use case finally exists. It's just fifteen years too late
The sharpest irony in this whole story is that the setup that would benefit most from HEC is the one sitting in millions of living rooms right now.
A modern entertainment unit has a TV that's always online, and plugged into it: a console, a streaming box, a Blu-ray player. Every one of those devices is better on a wired connection — more stable, lower latency, no dropouts mid-download. The standard solution is either four Ethernet cables snaking out of the wall, or a network switch tucked behind the unit. It works, but it's exactly the cable management problem HEC was designed to eliminate.
With HEC, you'd run one cable to the TV. Everything else would share it over HDMI. Every modern smart TV is a fully connected platform with a wired Ethernet port, a network stack, and more than enough connectivity to serve as a hub. The exact infrastructure HEC needed is now universal. It just arrived fifteen years too late to matter.

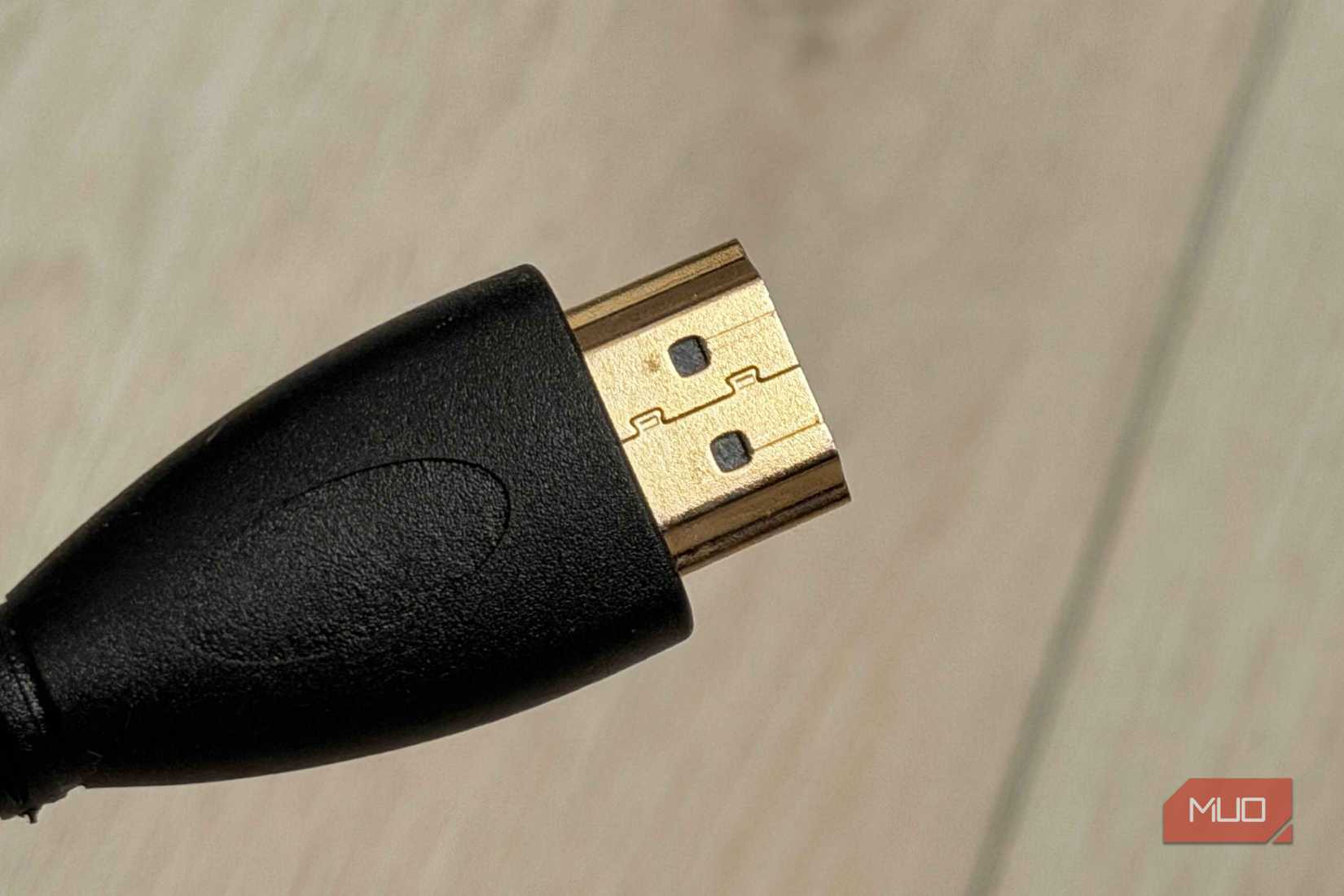

HDMI cables still have all the wiring needed for Ethernet
Nearly all HDMI cables are HEC-capable even though almost no devices are
The differences between an HDMI "with Ethernet" cable and a standard one are so minimal in manufacturing cost that it would be irrational not to include it — so essentially everyone does. The wiring is there. The pins are allocated. The cables roll off the line HEC-capable every single day, going into living rooms where no device will ever use that capability.
There's a strange parallel here with USB-C — except the failure mode is perfectly inverted. With USB-C, the devices are almost always capable. Your laptop, your phone, your monitor likely support Thunderbolt 4, DisplayPort, or PD charging. The cable is the bottleneck. A cheap USB-C cable that looks identical to a premium one might silently cap your charging speed or refuse to carry video altogether. The devices are ready; the cable isn't.
With HDMI and HEC, it's the opposite. Your cable almost certainly has the right wiring to carry Ethernet right now. It's the devices that were never built for it. Two connector standards, two confusion nightmares, two completely opposite failure modes. With USB-C you're never sure if your cable is good enough. With HDMI you can be certain your cable is fine — and equally certain it doesn't matter.
The right idea in the wrong decade
Perhaps HEC could make a comeback if HDMI ever released a new spec with a proper Gigabit HEC implementation. But, it seems that HDMI itself also has quietly given up on HEC.
HDMI has released multiple major spec updates since 1.4 — 2.0, 2.1, and now 2.2 — each dramatically increasing bandwidth and adding new features. None of them touched HEC. The 100 Mbps ceiling from 2009 was never revisited, never upgraded, never even acknowledged as a limitation worth addressing. A modern HDMI 2.1 cable carries up to 48 Gbps of bandwidth. Carving out a Gigabit lane for Ethernet — one that would make HEC genuinely competitive with a dedicated wired connection — would be a rounding error on that pipe. The physical capability is there. The will, apparently, isn't.
The cables in your entertainment unit right now are almost certainly HEC-capable. The TV they're plugged into is almost certainly the connected hub HEC's designers imagined. And none of it will ever talk to each other over Ethernet, because the window when that conversation might have happened opened in 2009 and quietly closed before anyone walked through it.
